Product Series： Multifunction Coating Machine

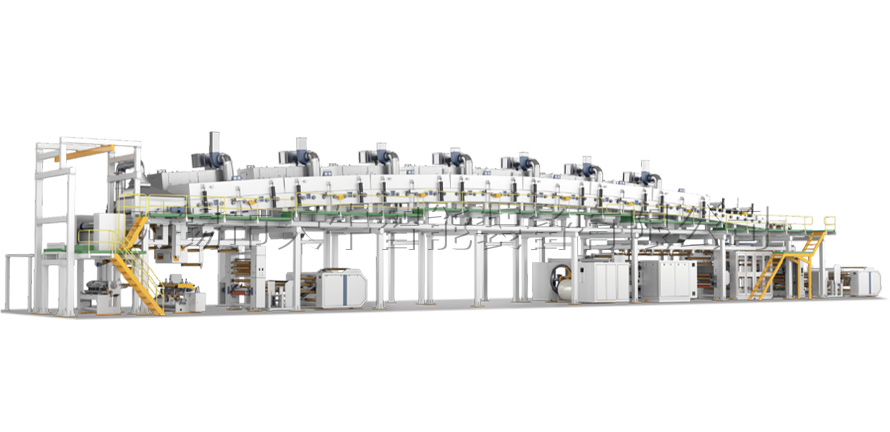

TN-FOM-1450-100 Multifunction Coating Machin

Application area
Optical functional film or tape

Features
Comma knife coating and micro-gravure coating;
Maximum linear velocity: 100m/min;
Coating weight: comma 30~2000um (wet); micro-gravure 1~50um (wet);
Coating width: 600~1350mm;
Standard configuration: specific turret unwinder and rewinder for film (with a diameter of 800mm), which allows auto-splicing without decel eration, high cleanliness clamshell drying oven (heating method: steam, thermal oil, or electric heating);
Optional: dust removal mechanism, corona treatment, online thickness measurement, storage rack;
Optional: horizontally arranged UV lamp set, meeting UV curing requirements;
Standard roller width: 1450, 1750mm, non-standard widths can be customized
